NZ-EST-10

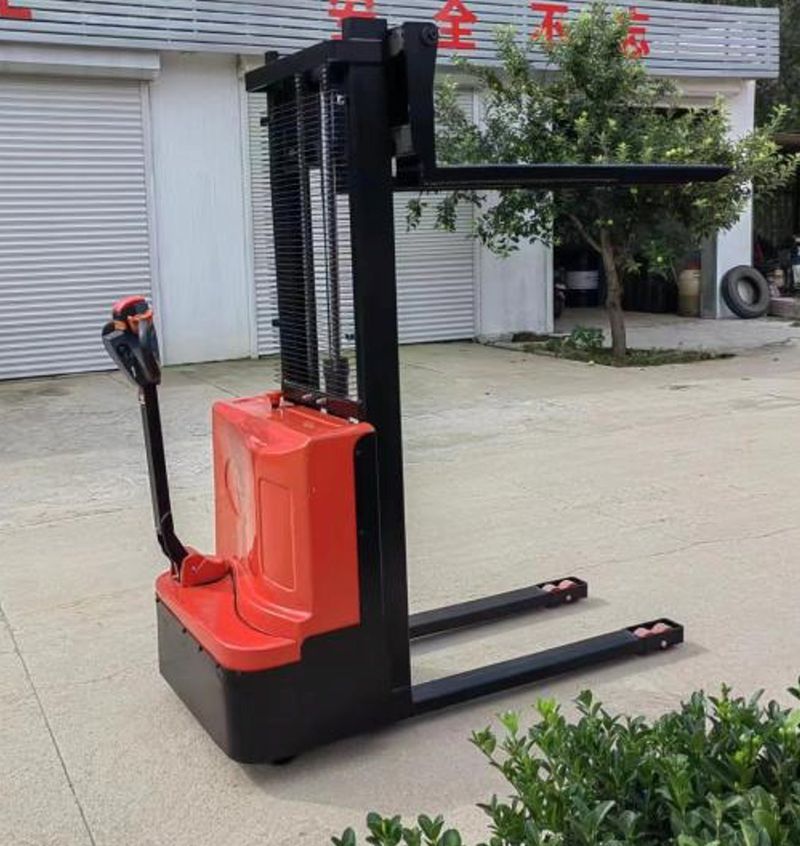

Stacker Electric pe Baterie 1T Ridicare 3m
Stacker electric pe baterie, capacitate 1000kg, ridicare pana la 3m, baterie 48V, joystick ECU
Electric walk-behind
Tractiune
400 kg
Greutate
Livrare
15
zile productie
45
zile transport
7
piese schimb (avion)
Direct din fabrica - preturi competitive
Piese de schimb in 5-7 zile prin avion
Posibilitate vizita la fabrica
Garantie completa
Raspundem in maximum 24 de ore
Specificatii Tehnice
| Capacitate | 1000 / 1500 / 2000 kg |
| Baterie | Plumb-acid 48V (20/32/45Ah) |
| Control | Joystick ECU |
| Centru sarcina | 475/575 mm |
| Emisii | Zero (electric) |
| Ideal pentru | Depozite, hale, spatii inchise |
| Termen livrare | In stoc sau 1 saptamana + 45 zile transport maritim |
| Power Type | Electric |
| Driving Method | Walking |
| Rated Load | 1000 / 1500 (Lifting 1.6-3 meters) / 2000 (Lifting 1.6-3 meters) |
| Load Center (mm) | 475/575 |
| Tire Type | Polyurethane |
| Drive Wheel Size (Diameter * Width) (mm) | 210 * 75 |
| Balance Wheel Size (Diameter * Width) (mm) | 128 * 50 |
| Load Load Wheel Size (Diameter * Width) (mm) | 80 * 70 |
| Driving Wheel/Balance Wheel/Load Load Wheel (Quantity) (mm) | 1 / 1 / 4 |
| Lifting Height (mm) | 1600 / 2000 / 2500 / 3000 |
| Overall Height (Minimum Forks) (mm) | 2080 / 1580 / 1830 / 2150 |
| Overall Height (Maximum Forks) (mm) | 2080 / 2570 / 3080 / 3580 |
| Overall Length (mm) | 1950 |
| Overall Width (mm) | 800 |
| Fork Length (mm) | 1150 (Customizable) |
| Fork Width (mm) | 180 (Customizable) |
| Maximum Adjustable Fork Width (mm) | 700 (Customizable) |
| Turning Radius (mm) | 2300 |
| Overall Weight (kg) | 355/400/440/465 |
| Travel Speed (Full Load/Unloaded) | Km/h: 4.2/5.1 |
| Lifting Speed (Full Load/Unloaded) | mm/s: 100/135 |
| Unloading Speed (Full Load/Unloaded) | Mm/s: 70/110 |
| Maximum Gradeability (Full Load) | % 6 |
| Braking Method | Electromagnetic Braking |
| Drive Motor Power (w) | 1200 |
| Lifting Motor Power (kw) | 2.2 |
| Battery Voltage/Capacity (V/Ah) | 48V/20Ah/32ah/45ah |
| Speed Control Method | MOS Stepless Speed Control System |
| PACKING | 32 units in 40HQ |
| SHIPPING TERMS | FOB QINGDAO PORT |
| PRODUCT STATUS | 100% NEW, MADE IN CHINA |
| WARRANTY | 12 MONTH OR 1500 WORKING HOURS |
| PAYMENT TERMS | 30% DOWN PAYMENT, 70% BALANCE PAYMENT BEFORE DELIVERY BY T/T |
