NZ-MLD-01

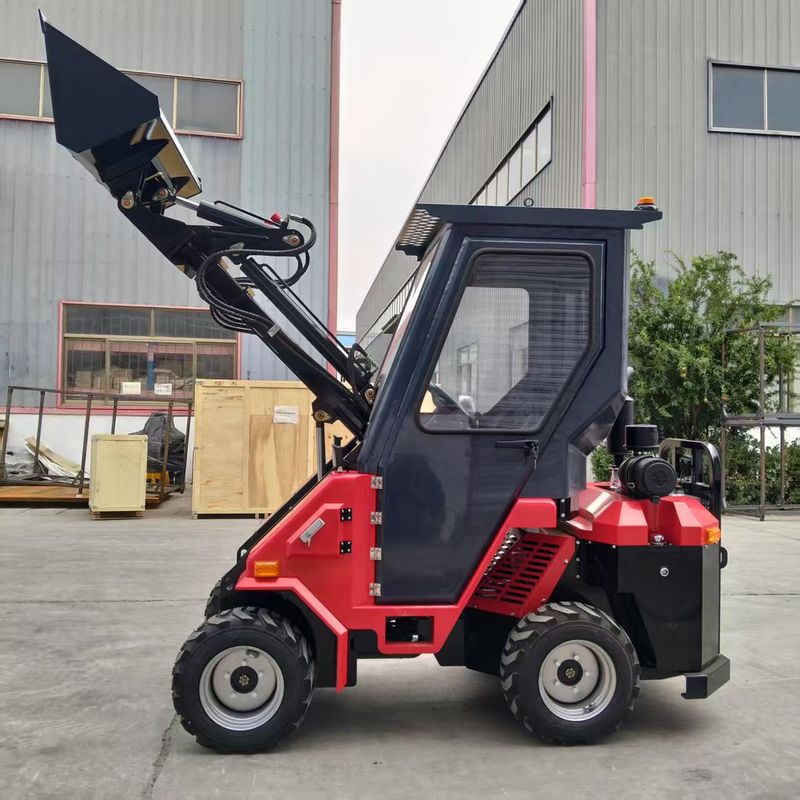

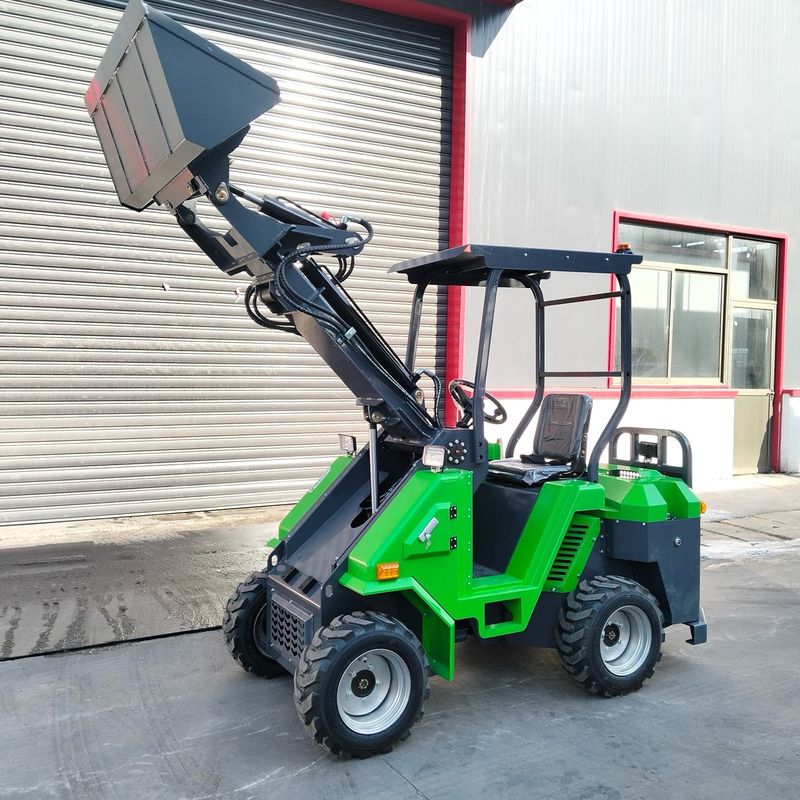

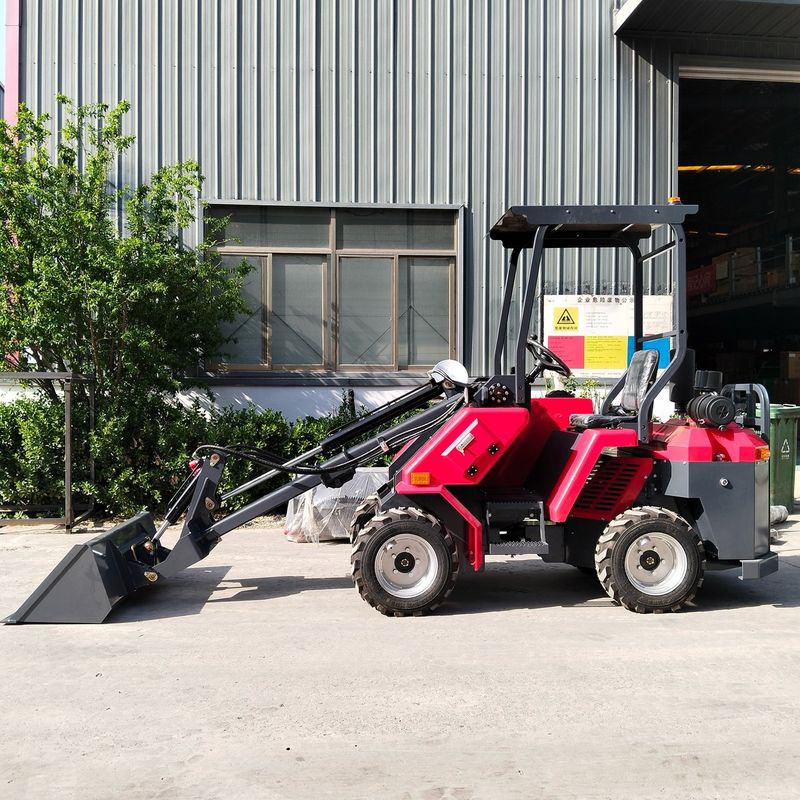

Mini Încărcător Compact Articulat
Mini încărcător compact cu braț articulat, ideal pentru spații restrânse
25 CP
Putere Motor
4WD
Tractiune
Yanmar/Kubota tip
Motor
1,200 kg
Greutate
Livrare
15
zile productie
45
zile transport
7
piese schimb (avion)
Direct din fabrica - preturi competitive
Piese de schimb in 5-7 zile prin avion
Posibilitate vizita la fabrica
Garantie completa
Raspundem in maximum 24 de ore
Specificatii Tehnice
| Putere motor | 25 CP / 18.5 kW |
| Tip motor | Diesel, 3 cilindri |
| Tractiune | 4WD |
| Capacitate ridicare | 800 kg |
| Inaltime ridicare | 2.5 m |
| Greutate operationala | 1200 kg |
| Directie | Articulata |
| Latime | 1050 mm (trece prin porti standard) |
| Viteza deplasare | 0-12 km/h |
| Sistem hidraulic | Cuple rapide universale |
| Compatibil atasamente | Cupa, furci palet, burghiu, perie, lama zapada |
| Ideal pentru | Spatii inguste, ferme, depozite, gradini, amenajari |
| Garantie | Conform legislatiei in vigoare |
| Termen livrare | 15 zile productie + 45 zile transport maritim |
| Piese schimb | Livrare 5-7 zile lucratoare (transport aerian) |
| Maximum lifting height | 3350mm |
| Engine Brand | Runtong 739 |
| Horsepower/Speed | 26HP/3600rpm |
| Maximum pivot height | 2680mm |
| Fuel tank capacity | 30L |
| Main boom tilting height (tilting angle 45°) | 2000mm |
| Hydraulic oil tank capacity | 30L |
| Main boom tilting range | 1240mm |
| Loading capacity | 500Kg |
| Maximum load capacity of main boom | 800kg |
| Bucket volume | 0.3m³ |
| Boom lifting height | 2680mm |
| Maximum speed | 9Km/h |
| Boom tilting height (tilting angle 45°) | 2300mm |
| Net weight | 1450KG |
| Maximum load capacity of boom | 600kg |
| Operating weight | 2000KG |
| Overall length (bucket on the ground, boom retracted) | 3380mm |
| Climbing ability | 30% |
| Boom extension length | 570mm |
| Tire size | 23*8.5-12 |
| Overall width | 1240mm |
| Drive type | 4-wheel drive |
| Overall height | 2250mm |
| Steering type | Hydraulic articulated steering |
| Wheel track | 1360mm |
| Export packaging | Fumigation-free wooden crate packaging 3100*1350*1770mm |
| Minimum ground clearance | 190mm |
| System pressure | 25MPa |
| Turning radius | 2600mm |
| Standard flow rate | 33L/min |
| Engine options | Runtong 739 / Kepu 292 / Briggs 3864 / Honda GX690 / Kubota D1105 |
| Options | Kubota/ changchai/ koop/ honda/ briggs&stratton/ Cabin/ rought terrain tire |
| PACKING | 8 units in 40HQ |
| SHIPPING TERMS | FOB QINGDAO PORT |
| PRODUCT STATUS | 100% NEW, MADE IN CHINA |
| WARRANTY | 12 MONTH OR 1500 WORKING HOURS |
| PAYMENT TERMS | 30% DOWN PAYMENT, 70% BALANCE PAYMENT BEFORE DELIVERY BY T/T |
